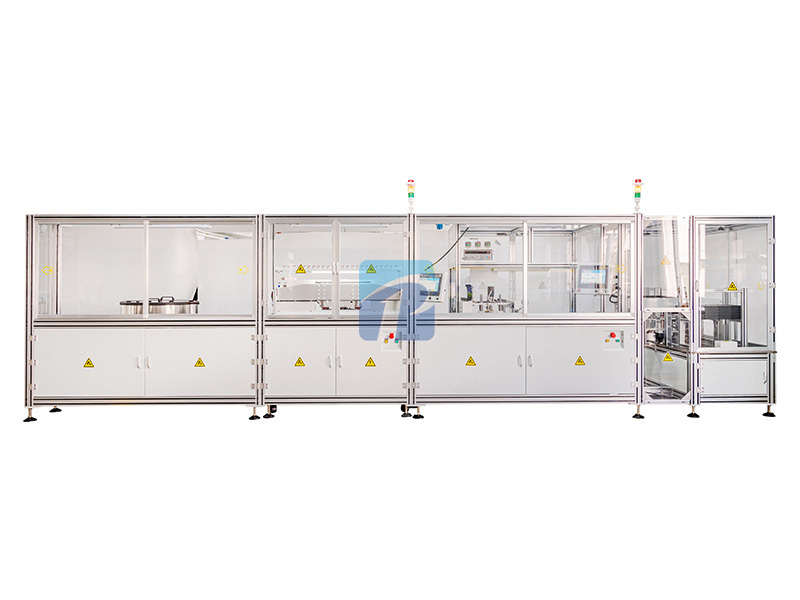

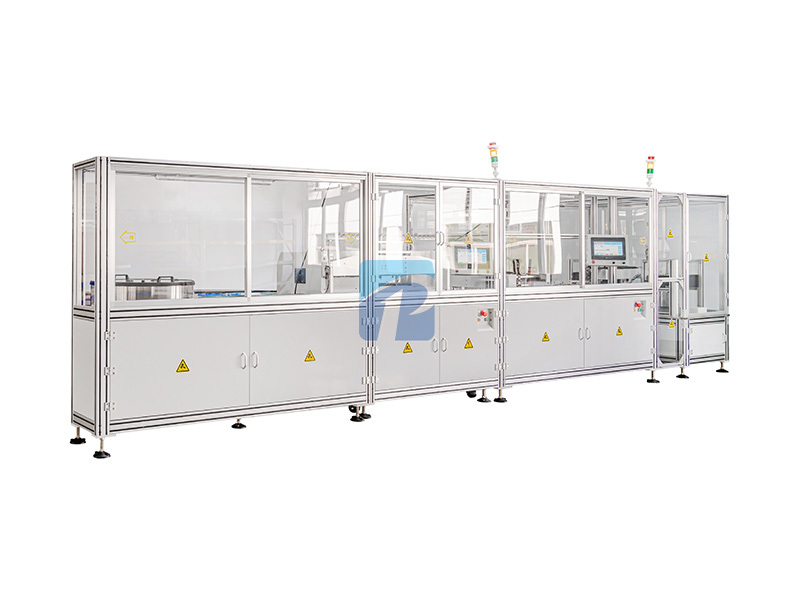

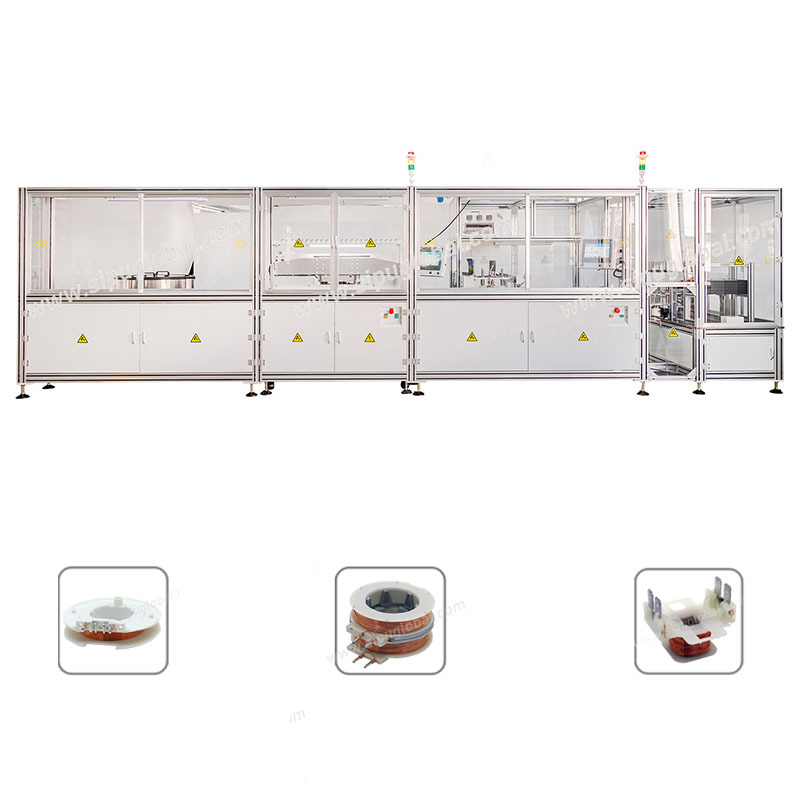

Fully Automatic Valve Coil Production Line
With our automatic winding equipment, you can produce high-quality relay coils with precision and speed, ensuring maximum productivity for your manufacturing process. Whether you are in the communication, hydraulic, or automotive industry, our fully automatic coil production line is an ideal choice for your production needs.
- Information
Fully Automatic Valve Coil Production Line
Machine introduction
SIPU coil winding device is perfect for producing high-quality valve coils used in communication hydraulic valves, water valves, ignition coils, and automotive relays. With the ability to simultaneously wind up to 20 coils at speeds of up to 18,000 RPM, and a maximum hourly output of 2,000 pieces, our winding equipment ensures high production efficiency.
Process

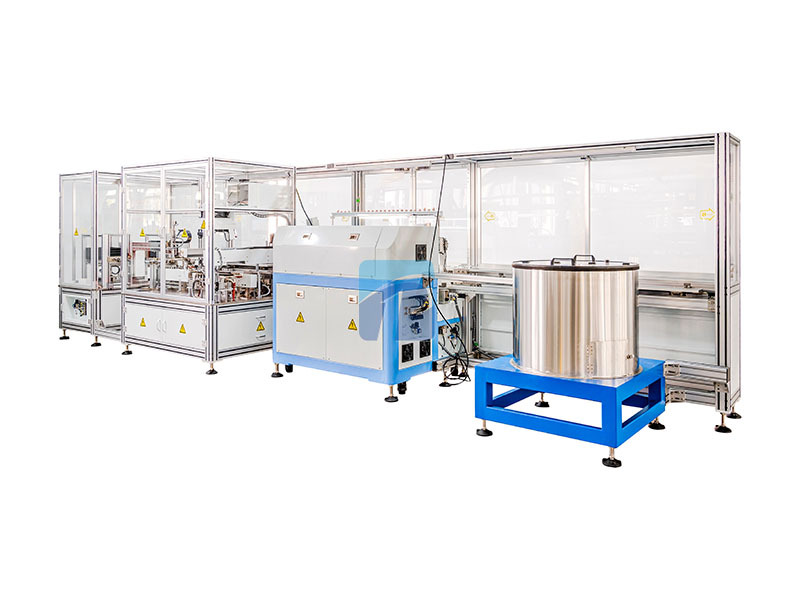

Auto bowl feeder→Pin inserting machine→Winding Machine→Soldering Machine→ Testing→ Injection Molding→Conveyor Unload
Machine Features
1.Flexible programming options for customized coil designs. CNC-controlled automatic coil winding machine offers unparalleled precision and control for the production of complex coils.
2.High-speed bearing installation: The winding shaft are equipped with high-speed bearings, capable of achieving a maximum speed of 18000RPM.
3.Use S3M wear-resistant synchronous belt to rotate ,ensure high speed and low noise.
4.The welding process uses electric current welding technology, which ensures that the product is not polluted and improves the stability of the solder quality.
5.The fixture is used to bend the pin after welding, ensuring high bending consistency.
6.The coil resistance can be automatically tested, and defective products can be sorted out.
7.The injection molding process for vertical injection molding machines can be added according to customer requirements.
8.The products are automatically packaged using a packaging machine that can stack 12 empty trays and full trays at once.
Technical Parameter
| Model | SPBZ23-A3B32J |
| No. of Spindle | 20 Spindles |
| Spindle Pitch(mm) | 51mm |
| Spindle Speed(rpm) | Max.18000rpm (CW/CCW) |
Maximum Travel Distance | X-Axis 110mm (Front/Back) |
| Y-Axis 110mm (Left/Right) | |
| Z-Axis 80mm (Up/Down) | |
| Controller | EtherCAT or RTEX controller |
| Wire Range(mm) | 0.02-0.10mm |
| Power Source | AC380V 3P 50HZ or AC200V 3P 50/60HZ |
| Power Consumption | 5KW |
| Air Pressure (Mpa) | 0.45Mpa~0.65Mpa |
| Machine Size (mm) | 6000(W)×2500(D)×1800(H)mm |
| Machine Weight (mm) | About 2000KG |
Option | 1.Wire twister |
| 2.Cutter | |
| 3.Automatic loading & unloading | |
| 4.Peeling device | |
| 5.Electrical tensioner |
