32 Spindles Winding Machine
In conclusion, our coil winding machine is an excellent investment for any manufacturing facility. The automatic winding machine's user-friendly design, durability, and flexibility make it a reliable and versatile tool for producing a variety of coil products.
- Information

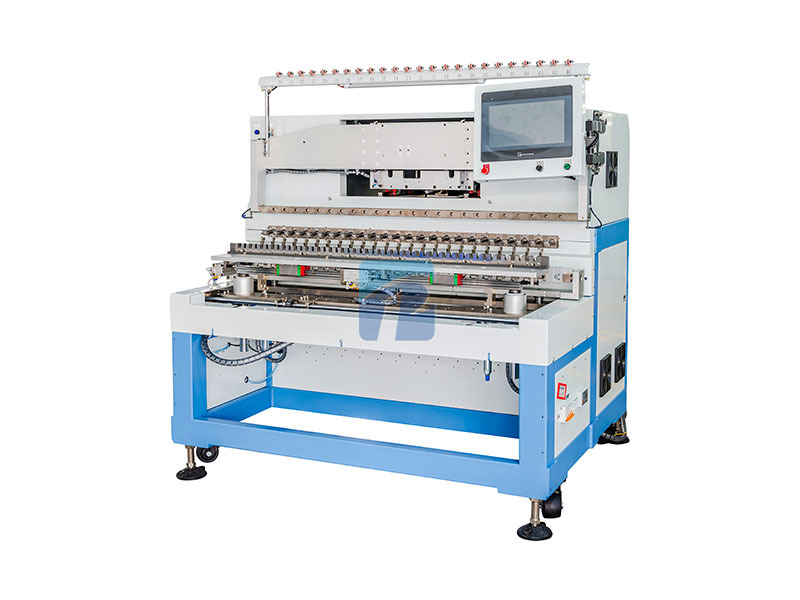

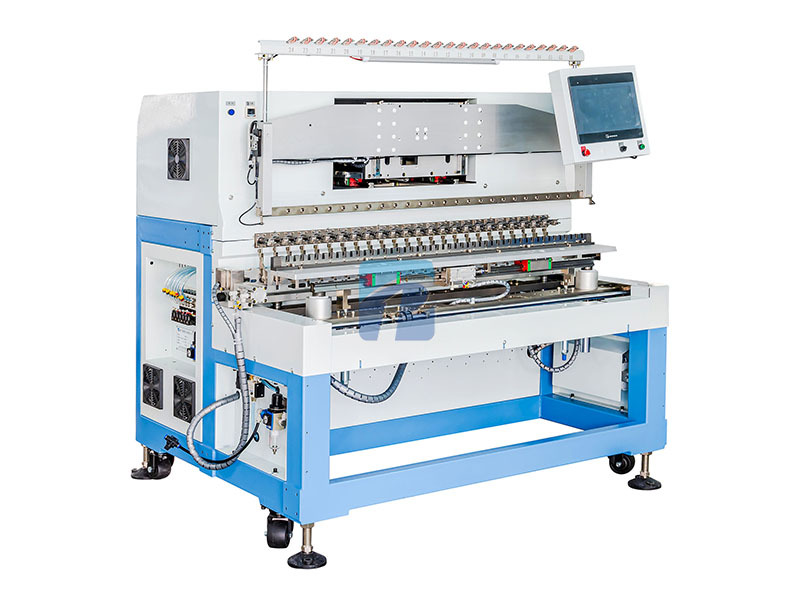

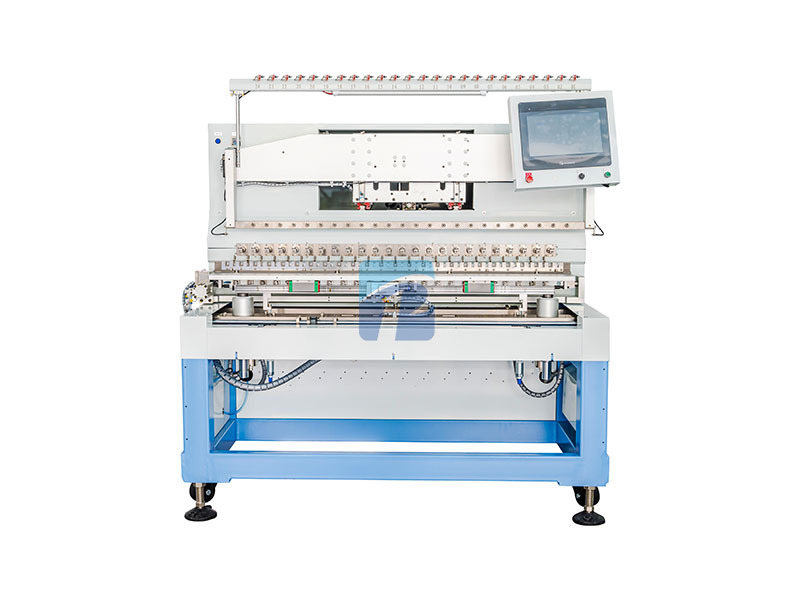

32 Spindles Winding Machine
Machine introduction
32 spindles winding machine is a type of precision winding machine used to wind coils on bobbins for use. These automatic winding machines are capable of winding multiple layers of wire onto a bobbin in a precise and automated manner, improving efficiency and reducing the likelihood of errors.
With features such as automatic wire threading, tension control, and speed adjustment, these machines are designed to provide a high level of accuracy and consistency in coil winding. The winding machine can also handle a wide range of wire gauges and types, making them versatile and suitable for different applications.
Machine Features
1.Easy to Use: SIPU 32-spindle automatic winding machine is designed to be user-friendly, making it easy for anyone to operate. The controls are simple and intuitive, and the winding machine is easy to set up and maintain.
2.The 32-axis machine with a 31.5mm axis spacing suitable for winding small coils such as those used in relays, communication relays, and surface-mount transformers.
3.Winding shafts use high-speed bearings for a maximum speed of 20,000 RPM and S3M wear-resistant synchronous belts to achieve high speeds with low noise.
4.Modular design allows for the addition of encapsulation tape, cutting, wire stripping, and twisting devices.
5.Visual touchscreen operation allows for easy program switching for different products.
6.The winding machine is made from high-quality materials, making it resistant to wear and tear.
7.Safety features: The coil winding machine have safety features, such as emergency stop buttons and safety guards, to ensure operator safety during operation.
Technical Parameter
| Model | SPBZ23-A1B32 |
| No. of Spindle | 32 Spindles |
| Spindle Pitch(mm) | 31.5mm |
| Spindle Speed(rpm) | Max.32000rpm (CW/CCW) |
Maximum Travel Distance | X-Axis 110mm (Front/Back) |
| Y-Axis 110mm (Left/Right) | |
| Z-Axis 80mm (Up/Down) | |
| Controller | EtherCAT or RTEX controller |
| Wire Range(mm) | 0.02-0.4mm |
| Power Source | AC380V 3P 50HZ or AC200V 3P 50/60HZ |
| Power Consumption | 2000W |
| Air Pressure (Mpa) | 0.45Mpa~0.65Mpa |
| Machine Size (mm) | 1300(W)×1250(D)×1270(H)mm |
| Machine Weight (mm) | About 1100KG |
Option | 1.Wire twister |
| 2.Cutter | |
| 3.Automatic loading & unloading | |
| 4.Peeling device | |
| 5.Electrical tensioner |
