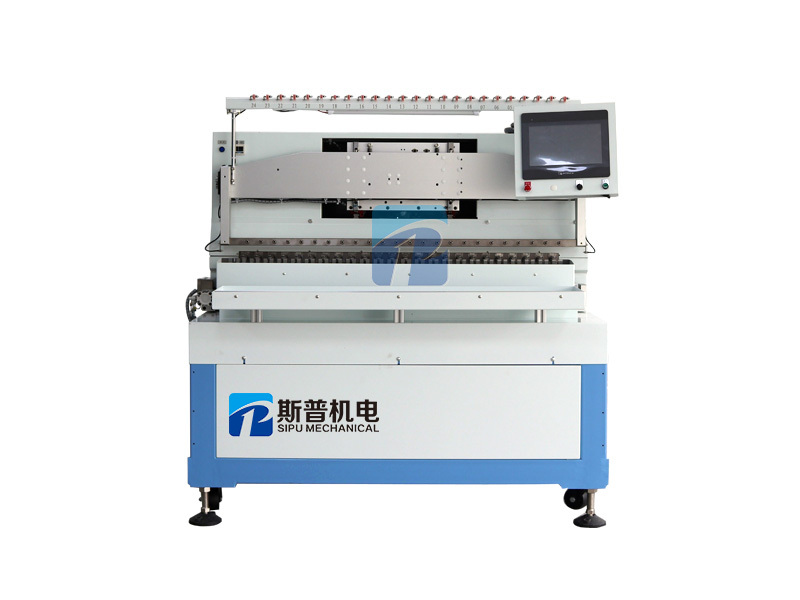

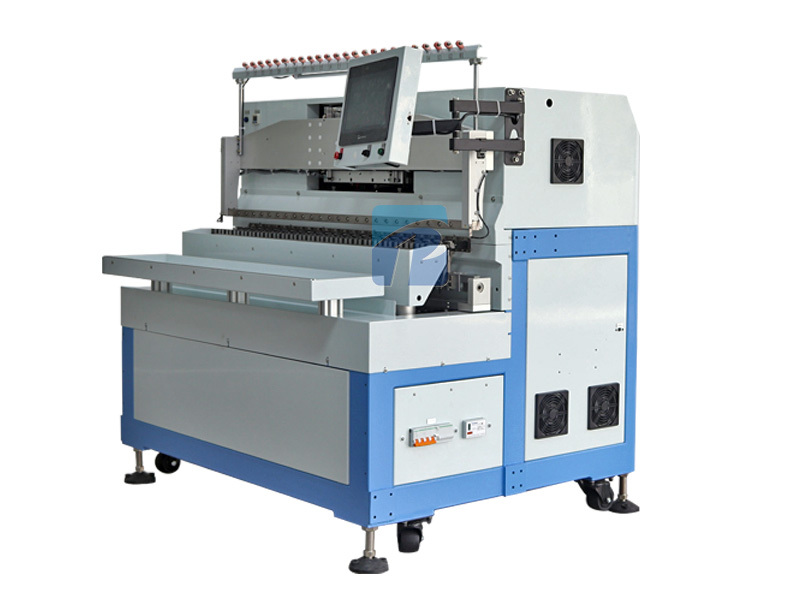

12 Spindles Coil Winding Machine
Automatic coil winding machines offer efficient and high-quality winding solutions for various industries, with advanced CNC technology producing complex and precise coils while reducing production time and labor costs.
The 12-spindle winding machine simultaneously winds up to 12 coils, increasing productivity and reducing lead times, making it ideal for high-volume production. These machines maintain precise winding tension, ensuring consistent high-quality coils that meet the highest standards of quality and performance.
- Information
12 Spindles Winding Machine
Introducing our high-quality Automatic CNC Coil Winding Machine with 12 spindles, designed to meet your industrial coil winding needs. This Coil Winder is engineered with the latest technology to provide precision and accuracy in winding coils.
Machine introduction
With this automatic winding machine, you can easily wind coils of different shapes and sizes,such as relays, current contactors, solenoid coils, telecom transformers,small power transformers, signal transformers, inductors, filter choke coil.
The winding machine is designed to handle high volume production while maintaining consistent quality. The 12 spindles winding machine allows you to wind multiple coils at the same time, which increases efficiency and saves time.
Machine Features
1.The maximum shaft spacing of the 12 spindles winding machine can reach 81mm, which makes it suitable for winding larger coils such as contactors, power relays, synchronous motors, and so on.
2.The coil winding machine is designed with CNC technology, making it easy to program and operate.
3.Customize jig for easy replacement of winding fixtures.
4.The S3M wear-resistant synchronous belt is used to rotate, achieving high speed and bringing lower noise.
5.The intuitive interface ensures that even novice operators can use the machine with ease.
6.Our Coil Winding Machine is equipped with a robust and durable construction, ensuring longevity and reliability.
7.The winding machine is made from high-quality materials, making it resistant to wear and tear.
8.The 12 spindles winding Machine also comes with a safety feature that automatically stops the machine when there is a malfunction.
Technical Parameter
| Model | SPBZ23-A1B12 |
| No. of Spindle | 12 Spindles |
| Spindle Pitch(mm) | 81mm |
| Spindle Speed(rpm) | Max.15000rpm (CW/CCW) |
Maximum Travel Distance | X-Axis 110mm (Front/Back) |
| Y-Axis 110mm (Left/Right) | |
| Z-Axis 80mm (Up/Down) | |
| Controller | EtherCAT or RTEX controller |
| Wire Range(mm) | 0.02-0.4mm |
| Power Source | AC380V 3P 50HZ or AC200V 3P 50/60HZ |
| Power Consumption | 2000W |
| Air Pressure (Mpa) | 0.45Mpa~0.65Mpa |
| Machine Size (mm) | 1300(W)×1250(D)×1270(H)mm |
| Machine Weight (mm) | About 1100KG |
Option | 1.Wire twister |
| 2.Cutter | |
| 3.Automatic loading & unloading | |
| 4.Peeling device | |
| 5.Electrical tensioner |
