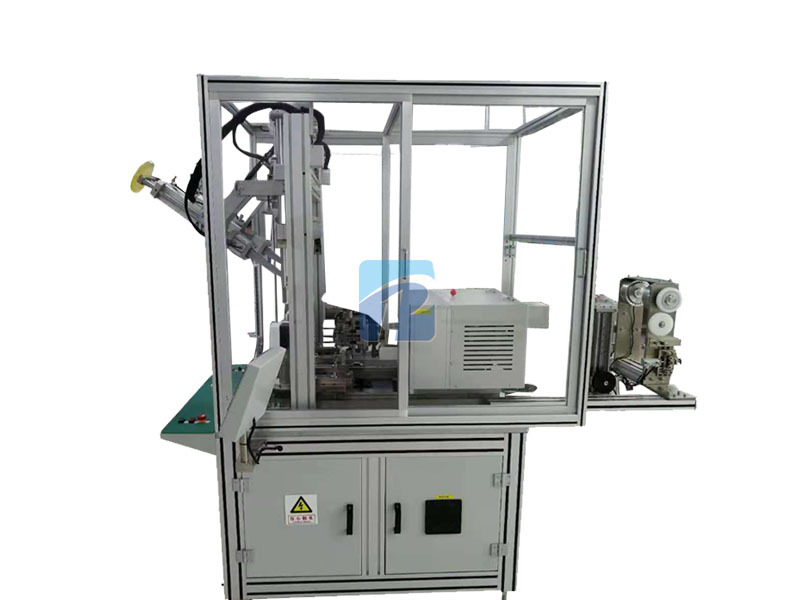

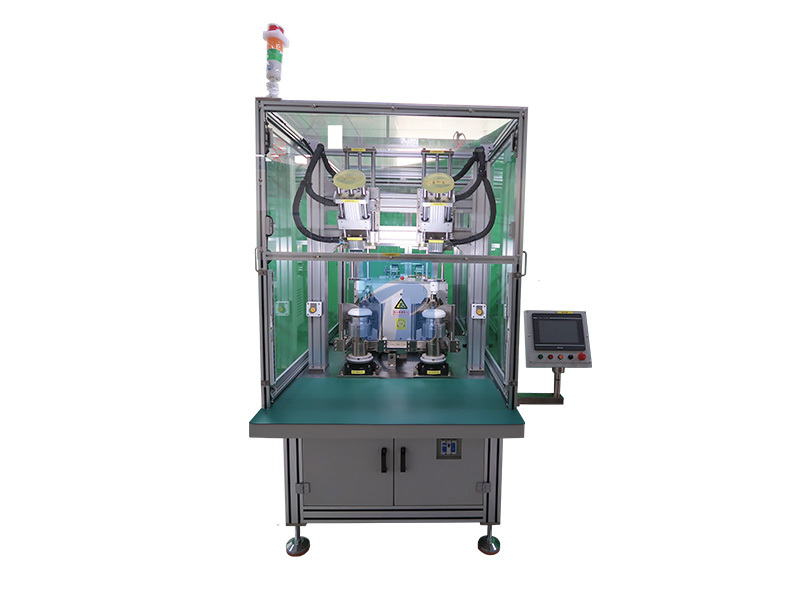

Automatic Outer Motor Flyer Winding Machine
With the Flyer Winding Machine for BLDC Outer Rotor Coil Windings, you can achieve consistent and high-quality winding results every time. This brushless motor winding machine is suitable for a wide range of applications, including electric vehicles, robotics, and industrial automation. Contact us today to learn more about our winding solutions for BLDC motors.
- Information
Automatic Outer Motor Flyer Winding Machine
Machine introduction
Automatic Outer Motor Flyer Winding Machine is the perfect solution for efficient and accurate coil winding of outer motors. This motor coil winder is designed to meet the needs of industries that require high-quality motor stators of motorcycles (12, 18 poles, thick wire diameter), digital generators of 2KW, 3KW, and other brushless motor stators.

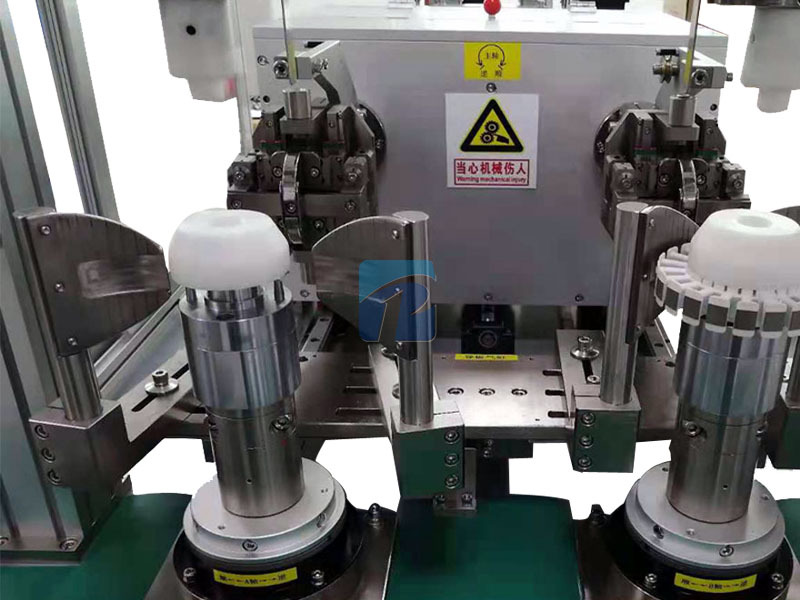

This motor winding machine adopts double flywheel winding, automatically wire clamping and manually feeding the armature rotor .
Machine Features
1.Controlled by a motion control card with the ability to store 100 programs
2.Two independent tooling fixtures are controlled by a servo motor and precision reducer, ensuring high corner accuracy
3.Precision version with double-axis stator winding
4.Touch screen interface for easy operation and monitoring
5.Equipped with an electromagnetic tensioner for stable and reliable tension control with a long lifespan.
6.Automatic wire threading and cutting functions
7.Adjustable tension control during winding, ensuring stable and reliable winding with neat appearance
8.Optional safety windows and safety light curtains improve the system's safety performance
Technical Parameter
| Model | JPRX-F002-JM |
| Number of stations | 2 |
| Spindle Pitch(mm) | 240mm（can be customized） |
| Spindle Speed(rpm) | Max.1000rpm (CW/CCW) |
| Controller | PLC+CNC Control |
| Counting accuracy | 0.1° |
| Wire Range(mm) | 0.60-1.60mm |
| Power Source | AC380V 3P 50HZ or AC200V 3P 50/60HZ |
| Air Pressure (Mpa) | 0.4Mpa~0.7Mpa |
Application | BLDC motor，generator motor, motor bike startor ,robot drive motors,Ceiling Fan Iron Core，AC Cooling Fan Iron Core，automobile cooling fan motor , etc. |
