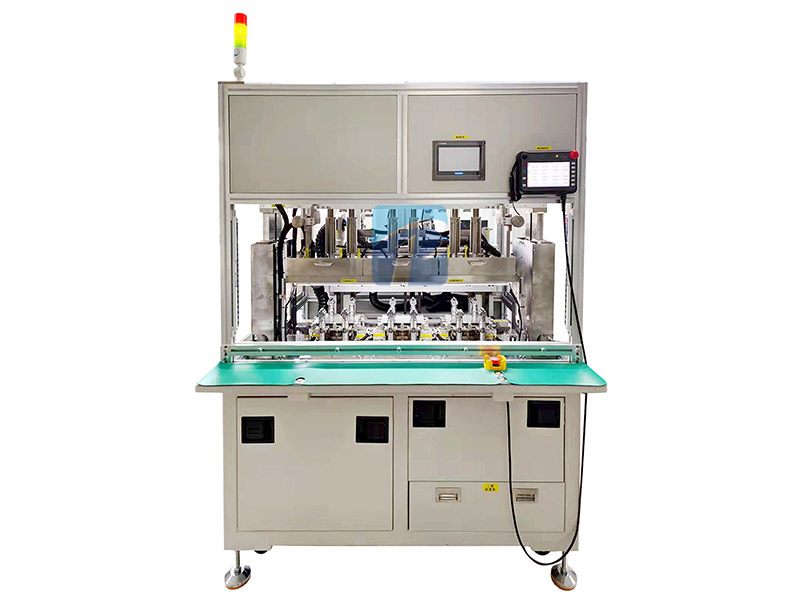

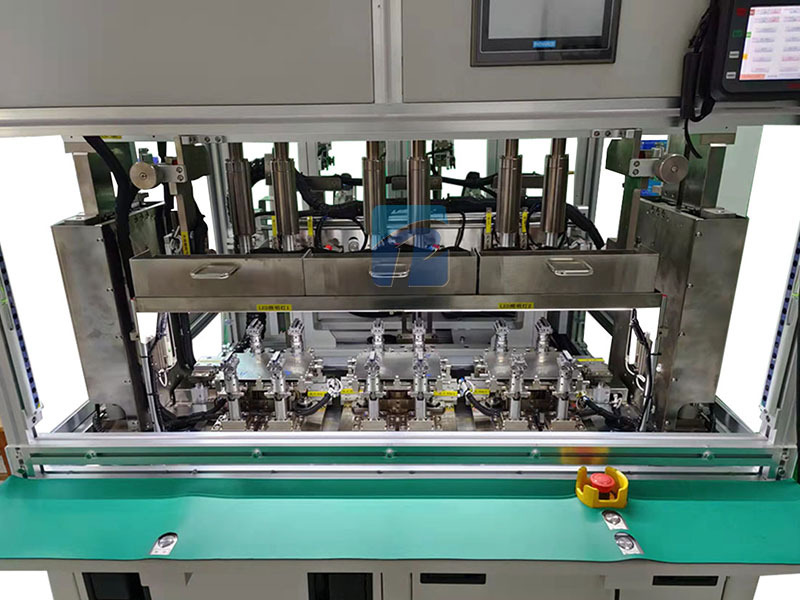

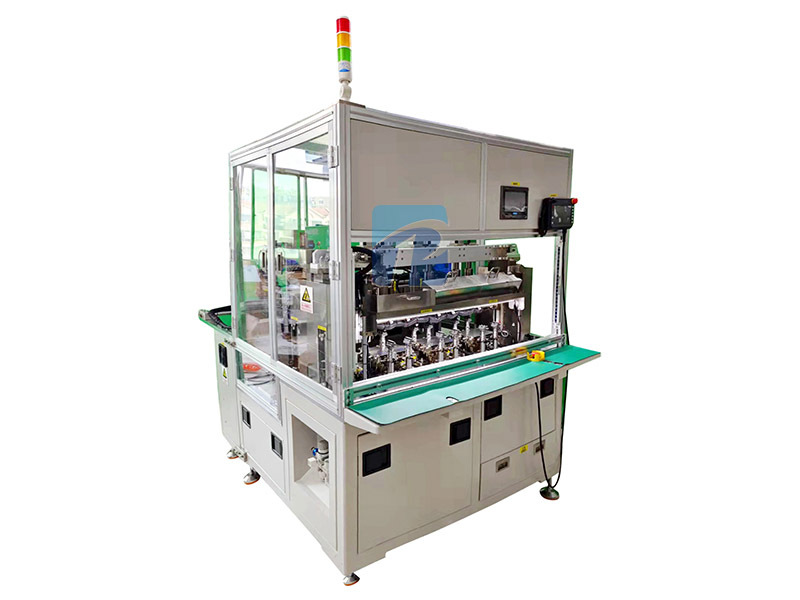

Automatic Modular Servo Motor Winding Machine

Automatic Modular Servo Motor Winding Machine is a highly reliable and efficient machine designed for winding coils on block-type electric motor stators. The machine's advanced features, precise control system, and optional accessories make it an essential tool for any production line. The motor winding machine's safety features ensure that operators are protected during operation, making it a safe and reliable option for any workspace.

  • Information

Automatic Modular Servo Motor Winding Machine

Machine  introduction

Automatic Modular Servo Motor Winding Machine is a high-performance machine designed for winding coils on block-type electric motor stators. The modular stator winding machine is an ideal choice for various applications, including elevator systems and other machinery. This motor winding machine is equipped with advanced features that ensure precision and efficiency, delivering optimal results every time.


motor winding machine

Definition of Servo Motor

A servo motor is a rotary or linear actuator that allows for precise control of angular or linear position, velocity, and acceleration in a mechanical system.Each permanent magnet servo motor mainly consists of a motor housing. It contains a stator, a rotor with permanent magnets and a rotary encoder.


Reasons for choosing SIPU's  Automatic Modular Servo Motor Winding Machine:

  1. Superior Performance of Servo Motors

    • High Efficiency and Power Output: Servo motors deliver exceptional efficiency and high power output, ensuring optimal performance for winding operations.

    • Closed-Loop Control: The closed-loop control system provides precise positioning and speed control, resulting in consistent and accurate winding.

    • Quiet Operation: Designed for low noise levels, making them ideal for environments requiring minimal disturbance.

    • High Reliability: Built to withstand demanding industrial conditions, ensuring long-term durability and reduced downtime.

  2. Modular Design for Enhanced Flexibility

    • The modular design of our servo motors allows for easy customization and adaptability to various winding requirements.It can significantly reduces production time and simplifies maintenance, ensuring seamless integration into your production line.

  3. Cost-Effective Production

    • By automating the winding process, our machine effectively controls production costs and minimizes material waste.

    • It reduces the need for manual labor, saving both manpower and financial resources.

  4. Contribute to the winding industry

  • SIPU's automatic modular servo motor winding machines promote progress in the winding industry. We combine cutting-edge technology with user-friendly operation to provide unparalleled precision, efficiency and reliability.


Machine  Features

1.Servo control system ensures high-precision winding and positioning

2.Capable of winding up to six coils simultaneously,providing high efficiency.

3.Touch screen interface for easy operation and monitoring

4.Programmable winding patterns and parameters for versatile applications

5.Automatic wire threading and cutting functions

6.Optional wire tension control system for precise wire tension adjustment

7.Optional automatic bobbin loading and unloading system for continuous operation


Technical Parameter

ModelJPX-P6-130
Number of stations6
Spindle   Pitch(mm)130mm
Spindle  Speed(rpm)Max.1000rpm (CW/CCW)
Controller

PLC+CNC Control

Counting accuracy0.1°
Wire Range(mm)0.19-0.90mm
Power SourceAC380V 3P 50HZ or AC200V 3P 50/60HZ
Air Pressure (Mpa)0.4Mpa~0.7Mpa

Application

various servo motors,block motors,wheel motors,robot drive motors,large model motors,new energy motors, etc.
