Semi-automaic Taping Machine
The semi-automatic coil taping machine is a versatile and efficient piece of equipment designed to streamline the process of taping coils. With its range of customizable options and user-friendly design, this taping machine is ideal for a variety of coil sizes and production needs. The semi-automatic coil taping machine is a versatile and efficient solution for taping coils. Its range of customizable options, intuitive design, and high-quality construction make it an ideal choice for a variety of production needs.
- Information

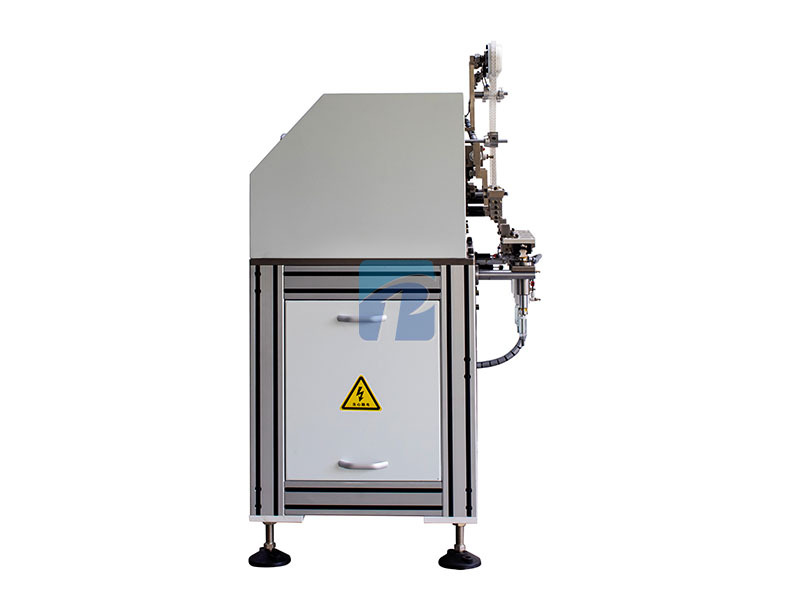

Semi-automaic Coil Taping Machine
Machine introduction

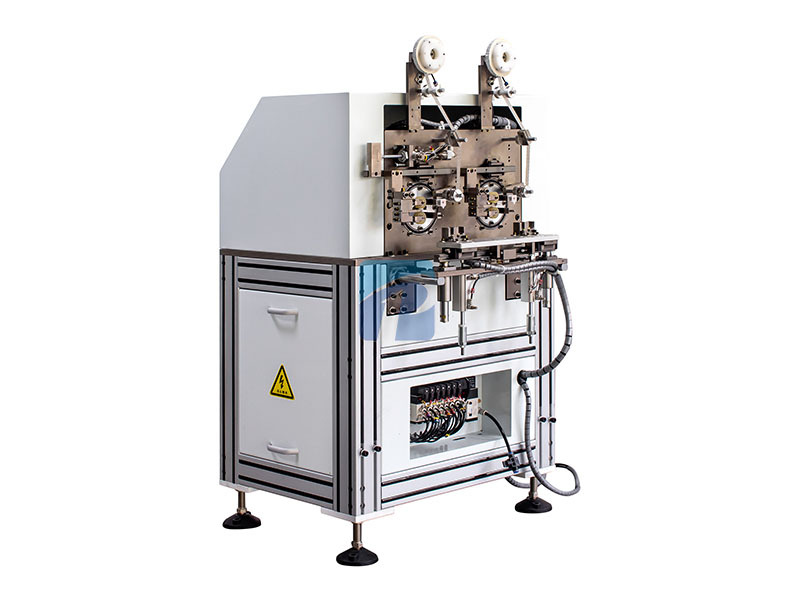

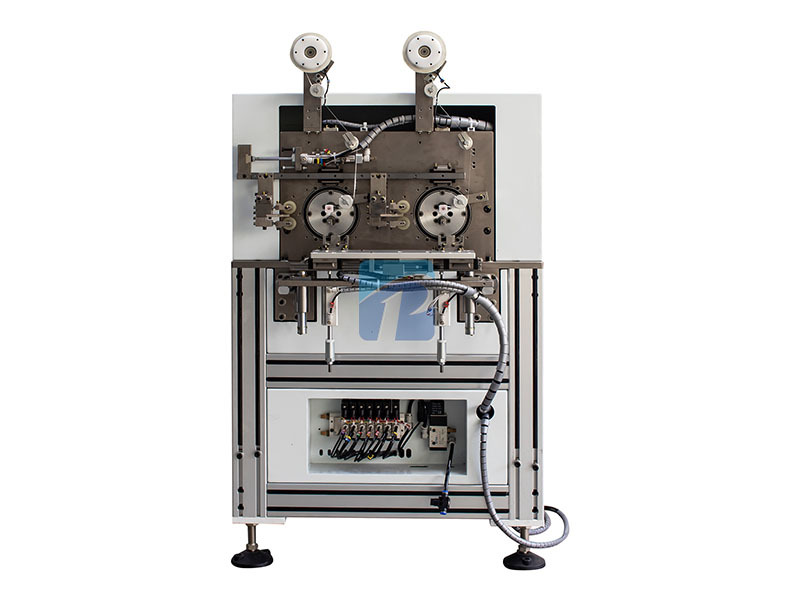

The Semi-Automatic Dual-Station Coil Taping Machine is a compact desktop-level device designed for coil taping. The Coil Taping Machine features two working stations that can process two different coils simultaneously, increasing production efficiency.
This coil taping equipment operates semi-automatically and requires manual loading and unloading. Its working principle involves placing the coils on the working station, after which the taping machine carries out the taping operation under its control.
Machine Features
1.Simple construction, easily control and convenient maintenance
2.Different products can be coated by changing fixtures, and change it easy and quick.
The replacement of the product is simple and fast, suitable for various operations.
3.The position of the ctape can be adjusted, and the tape tesion can be adjusted as well.
4.Automatic taping, automatic cut tape
5.The taping machine can apply adhesive insulation tape on various types of coils, including transformer coils, inductor coils, magnetic core coils, resistance coils,relay coils, ignition coils, contactor coils, valve coils, and more.
Technical Parameter
| Model | SP-G02 |
| Number of stations | 2 |
| Spindle Pitch(mm) | 120mm |
| Power Source | AC380V 3P 50HZ or AC200V 3P 50/60HZ |
| Power Consumption | 0.4 KW |
| Air Pressure (Mpa) | 0.45Mpa~0.65Mpa |
Machine dimension | 900(W)×500(D)×600(H)mm |
| Machine weight | About 200kg |
